The classic FOUR·8 rim brake, suited to all kinds of terrain

1 8

FOUR·8 RB

FOUR·8 RB

$1,955.00 NZD
$1,955.00 NZD $1,955.00 NZD
Sale Sold out
Tax included. Shipping calculated at checkout.

1480g · 48 X 28.7mm · 21mm inside · TLR

color
freehub
  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

SKU: 6096508849825-SHI

View full details

SPECS

  • Rim

    Rim-Brake specific and Tubeless Ready.

    · 48mm depth
    · 28.7mm outer width
    · 21mm inner width
    · 3K HT Wet-n-Dry brake surface

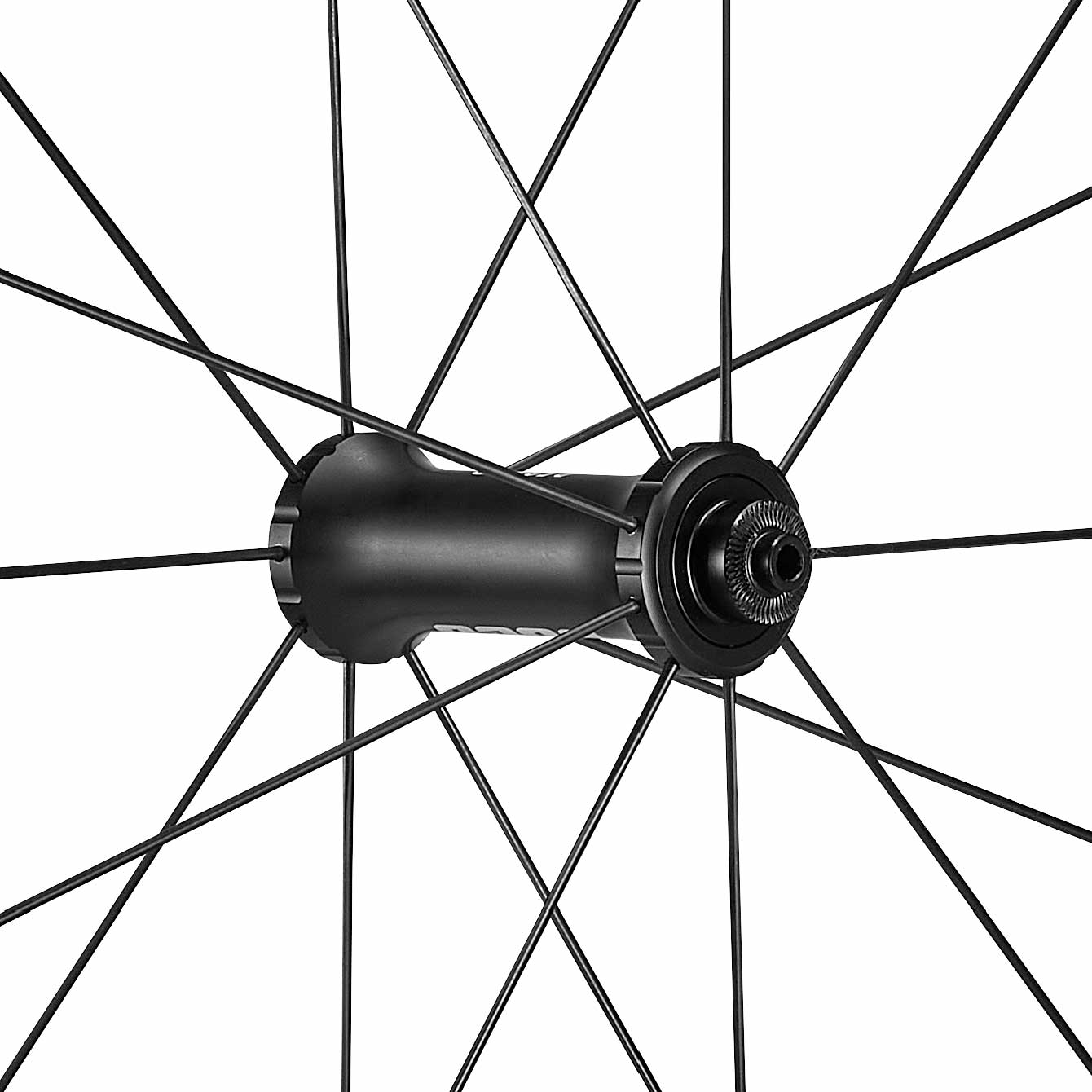

  • Hub

    DFCN·3 RB
    Lightweight hub set with RES·36 Star Ratchet for fast and reliable engagement.

    · QR axle: F: 9 x 100 // R: 10 x 130
    · Spokes: F: 9x-9x // R: 16x-8x
    · Straight pull
    · TPI bearings

  • Spoke

    Pillar Wing 20:
    · Aero shape
    · Lightweight → 4.3g @ L260mm
    · Stiff and strong
    · Sandvik steel
    · Reinforced elbow
    · Straight pull

  • Weight

    Wheel set weight: 1480g (± 2%).
    Max. allowed system weight: 120kg.

  • Nipple

    Pillar DSN 16:
    · 14G
    · 16mm
    · Brass

  • Comes with..

    Tubeless tape installed.
    4 Brake pads.
    1 set of QRI·42.

R48·RB

· 21mm wide to fit larger tires.

· U-shaped profile for maximum aero performance, even with bigger tires.

· Raised lip for burp-free and solid tubeless setup.

· Lowered box section to allow easy tire assembly.

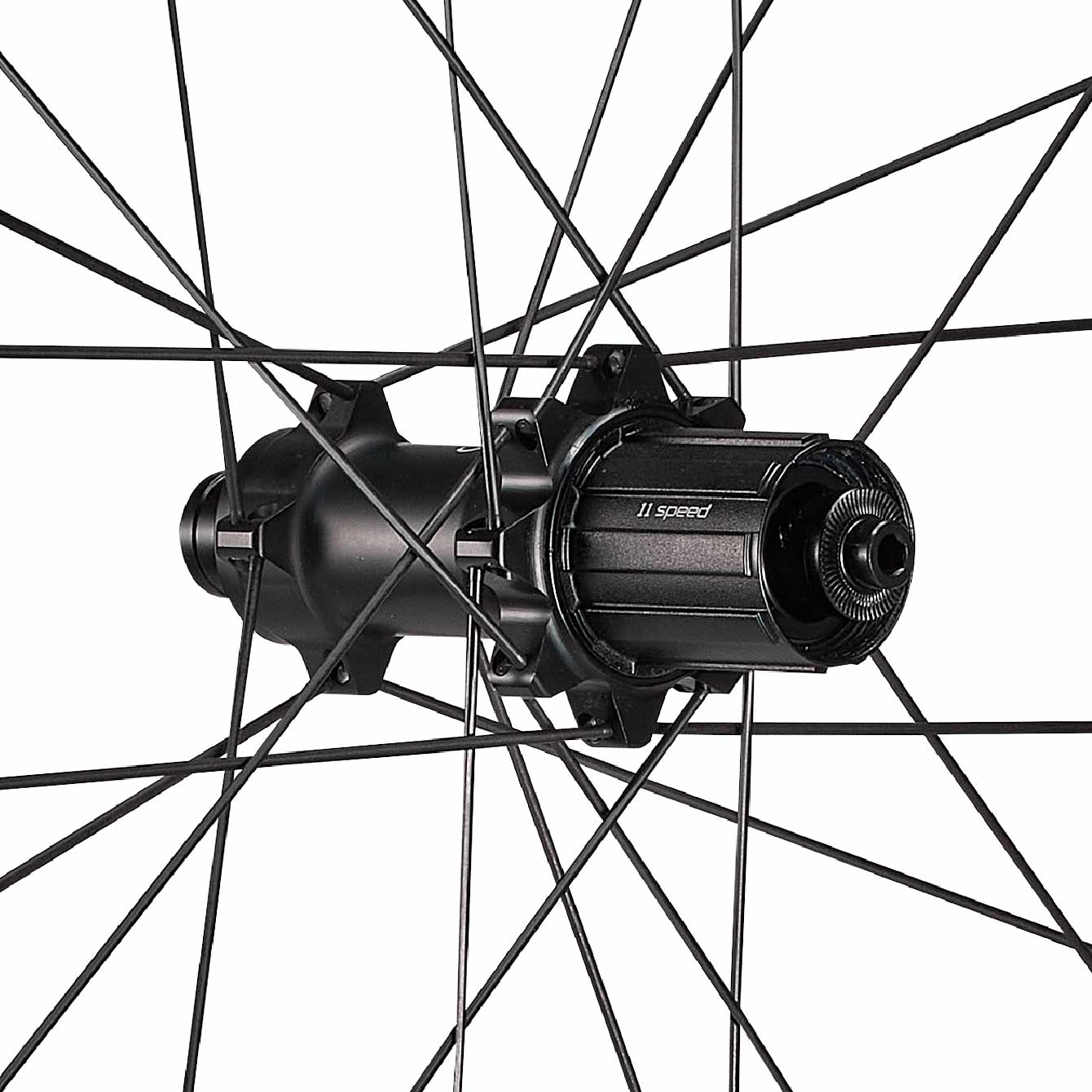

DFCN·3 RB

· RES-36 Star ratchet with a fast and reliable 10° engagement.

· Rear hub has a 2:1 spoke layout to have a more balanced spoke tension on Drive and Non-Drive Side.

· Compatible with Shimano, SRAM and Campagnolo. See 'freehub' option box.
